Driven extensible roller bed

Free consultation

​Our team of specialists is at your disposal to choose the product that suits your needs.

​Quality according to EU standards

Our products comply with the European Union standards, guaranteeing quality, reliability and superior performance.

Code:

SLF - PRA -EXT

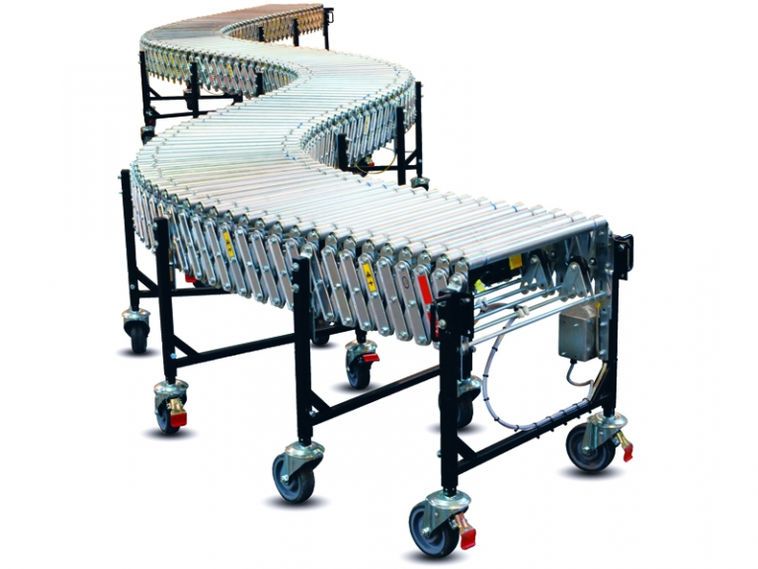

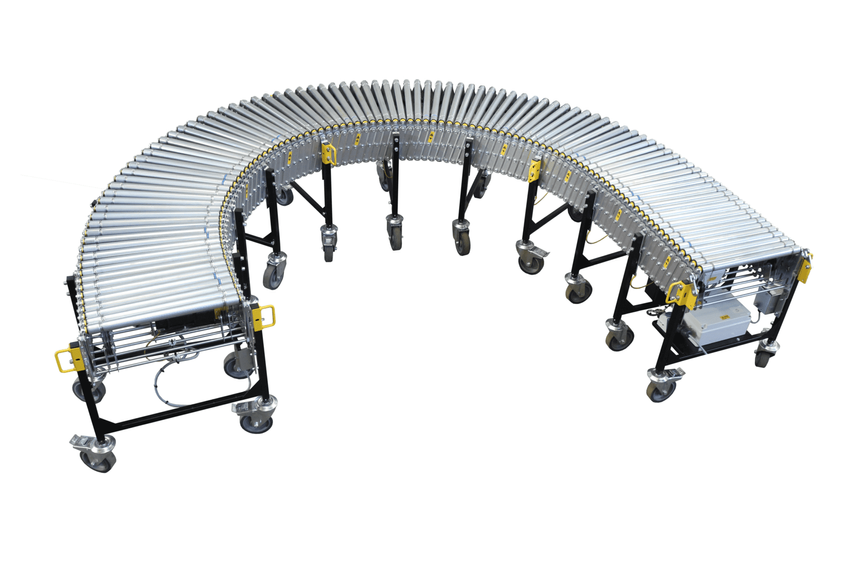

Driven extensible conveyor

Aplicatii generale, Logistica

Specifications

The transport capacity of the extendable roller beds is up to 150 kg / linear meter;

The conveyors are provided with metal rollers with a diameter of 40 mm - rollers with precision bearings and a 12 mm shaft;

The space between the rollers (when the conveyor is extended to the maximum) is 127 mm (there are also variants with a space of 102 mm or 76 mm for the transport of smaller parcels);

The height is adjustable between 800 and 1,100 mm;

The conveyors are equipped with braked wheels with a diameter of 150 mm, thickness 50 mm;

The version with 200 mm diameter wheels is also available for uneven surfaces;

The wheels are equipped with a brake;

Alte detalii

The speed is adjustable in the range 0 - 36 meters per minute to cover a wide range of possibilities;

The conveyors are provided with Start / Stop buttons at both ends to facilitate the control of the equipment;

Driven extensible conveyors are available in 450 mm, 600 mm or 750 mm width;

Extended length from 2,500 mm to 19,600 mm.

Available accessories:
End barrier (roll or plate);
Optical sensor;
Keepers.

Structure:

Extensibil

​The solutions are customized according to the specifications of our customers.
For other details or special constructions we are here to help!
